ms_crosslinking_parameters Class Reference

A class that represents base parametersType in crosslinking_1.xsd. More...

#include <ms_crosslinking_parameters.hpp>

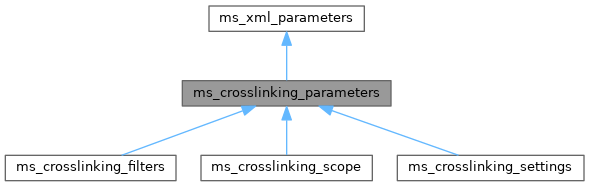

Inheritance diagram for ms_crosslinking_parameters:
Collaboration diagram for ms_crosslinking_parameters:

Public Member Functions

 ms_crosslinking_parameters ()
 Default constructor.

 ms_crosslinking_parameters (const ms_crosslinking_parameters &src)
 Copying constructor.

virtual ~ms_crosslinking_parameters ()
 Destructor.

void appendParameter (const ms_crosslinking_parameter *item)
 Adds a new parameter at the end of the list.

virtual void clearParameters ()
 Deletes all parameters from the list.

void copyFrom (const ms_crosslinking_parameters *right)
 Copies all content from another instance.

void defaultValues ()
 Call this member if you want to start again.

virtual bool deleteParameterByName (const char *name)
 Remove a parameter from the list in memory by its unique name.

virtual bool deleteParameterByNumber (const int idx)
 Remove a parameter from the list in memory by its index.

virtual int getNumberOfParameters () const
 Returns the number of parameters held.

const ms_crosslinking_parametergetParameterByName (const char *name) const
 Returns a parameter object by its name or a null value in case of not found.

const ms_crosslinking_parametergetParameterByNumber (const int idx) const
 Returns a parameter object by its number.

virtual std::string getParameterSchemaType () const
 Obtain a symbolic name for the parameter element schema type.

virtual std::string getSchemaType () const
 Returns name of the schema type that can be used to validate this element.

ms_crosslinking_parametersoperator= (const ms_crosslinking_parameters &right)
 C++ style assignment operator.

bool updateParameterByName (const char *name, const ms_crosslinking_parameter *param)
 Update the information for a specific parameter refering to it by its unique name.

bool updateParameterByNumber (const int idx, const ms_crosslinking_parameter *param)
 Update the information for a specific parameter refering to it by its index.

std::string validateDeep (const ms_xml_schema *pSchemaFileObj) const
 Performs validation of all child elements in addition to 'shallow' validation.

std::string validateShallow (const ms_xml_schema *pSchemaFileObj) const
 Performs simple validation of the top-level elements only.


Detailed Description

A class that represents base parametersType in crosslinking_1.xsd.

Holds a list of arbitrary parameters.

Constructor & Destructor Documentation

◆ ms_crosslinking_parameters() [1/2]

Default constructor.

Assigns reasonable default values to all internal members.

◆ ms_crosslinking_parameters() [2/2]

Copying constructor.

Parameters
srcanother instance of this class to copy the content from.

Member Function Documentation

◆ copyFrom()

void copyFrom ( const ms_crosslinking_parameters right)

Copies all content from another instance.

Parameters
rightanother instance of this class to copy the content from.

◆ defaultValues()

void defaultValues ( )

Call this member if you want to start again.

All internal values are reset to their defaults, as if the object had been freshly created with the default constructor.

◆ deleteParameterByName()

bool deleteParameterByName ( const char *  name)
virtual

Remove a parameter from the list in memory by its unique name.

Parameters
namename of the parameter for deletion.
Returns
TRUE if the parameter has been found and successfully deleted and FALSE otherwise.

Implements ms_xml_parameters.

◆ deleteParameterByNumber()

bool deleteParameterByNumber ( const int  idx)
virtual

Remove a parameter from the list in memory by its index.

Parameters
idxnumber of the parameter for deletion from 0 to (getNumberOfParameters() - 1).
Returns
TRUE if the parameter has been found and successfully deleted and FALSE otherwise.

Implements ms_xml_parameters.

◆ getNumberOfParameters()

int getNumberOfParameters ( ) const
virtual

Returns the number of parameters held.

Returns
total number of parameters in the list.

Implements ms_xml_parameters.

◆ getParameterByName()

const ms_crosslinking_parameter * getParameterByName ( const char *  name) const

Returns a parameter object by its name or a null value in case of not found.

Parameters
namename of the parameter to find.
Returns
a read-only pointer to a parameter object. See Maintaining object references: two rules of thumb.

◆ getParameterByNumber()

const ms_crosslinking_parameter * getParameterByNumber ( const int  idx) const

Returns a parameter object by its number.

Parameters
idxnumber of the parameter from 0 to (getNumberOfParameters() - 1).
Returns
a read-only pointer to a parameter object. See Maintaining object references: two rules of thumb.

◆ getParameterSchemaType()

std::string getParameterSchemaType ( ) const
virtual

Obtain a symbolic name for the parameter element schema type.

The obtained type name can be used to get a corresponding type description object from ms_xml_schema.

Returns
symbolic type name for the element.

Implements ms_xml_parameters.

Reimplemented in ms_crosslinking_filters, ms_crosslinking_scope, and ms_crosslinking_settings.

◆ getSchemaType()

std::string getSchemaType ( ) const
virtual

Returns name of the schema type that can be used to validate this element.

Additional information about the current object can be retrieved from the associated XML schema file. Every element in an XML document is defined with a named type, which you can use to find out what kind of limits (numerical or otherwise) are defined for values of that type.

See also
validateShallow(), validateDeep()
Returns
a symbolic fully qualified type name (for example, "mxm:nameType").

Implements ms_xml_parameters.

Reimplemented in ms_crosslinking_filters, ms_crosslinking_scope, and ms_crosslinking_settings.

◆ operator=()

C++ style assignment operator.

Parameters
rightanother instance of this class to copy the content from.
Returns
reference to the current object

◆ updateParameterByName()

bool updateParameterByName ( const char *  name,
const ms_crosslinking_parameter param
)

Update the information for a specific parameter refering to it by its unique name.

Parameters
namename of the parameter for updating.
paraman object to copy the content from.
Returns
TRUE if the parameter has been found and successfully updated and FALSE otherwise.

◆ updateParameterByNumber()

bool updateParameterByNumber ( const int  idx,
const ms_crosslinking_parameter param
)

Update the information for a specific parameter refering to it by its index.

Parameters
idxnumber of the parameter for updating from 0 to (getNumberOfParameters() - 1).
paraman object to copy the content from.
Returns
TRUE if the parameter has been found and successfully updated and FALSE otherwise.

◆ validateDeep()

std::string validateDeep ( const ms_xml_schema *  pSchemaFileObj) const
inherited

Performs validation of all child elements in addition to 'shallow' validation.

The current object can be checked against an XML schema. When using this method all possible checks are performed. However, this is not a substitute for the schema: some schema-defined constraint are not applied (unique fields, foreign keys etc.).

In order to make sure that current object is free from all syntax errors validate it as a part of the whole document.

See also
validateShallow(), getSchemaType()
Parameters
pSchemaFileObja valid schema object instance to validate against.
Returns
user-friendly description of any errors found during validation or an empty string if no errors detected.

◆ validateShallow()

std::string validateShallow ( const ms_xml_schema *  pSchemaFileObj) const
inherited

Performs simple validation of the top-level elements only.

The current object can be checked against some basic constraints in a schema without looking at children element types. When using this method only the current object and children derived from standard types (for example, restrictions with enumerations) are checked. For more thorough validation, use validateDeep().

See also
getSchemaType()
Parameters
pSchemaFileObja valid schema object instance to validate against.
Returns
user-friendly description of any errors found during validation or an empty string if no errors detected.

The documentation for this class was generated from the following files:
