ms_quant_composition Class Reference

Describes the compositionType type in quantitation.xml. More...

#include <ms_quant_composition.hpp>

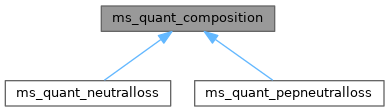

Inheritance diagram for ms_quant_composition:

Public Member Functions
	ms_quant_composition ()
	Default constructor.
	ms_quant_composition (const ms_quant_composition &src)
	Copying constructor.
virtual	~ms_quant_composition ()
	Destructor.
void	appendElement (const ms_quant_element *element)
	Adds a new element at the end of the list.
void	clearElements ()
	Deletes all elements from the list.
void	copyFrom (const ms_quant_composition *right)
	Copies all content from another instance.
void	defaultValues ()
	Call this member if you want to start again.
bool	deleteElement (const int idx)
	Remove an element from the list.
const ms_quant_element *	getElement (const int idx) const
	Returns an element object by its number.
std::string	getElementSchemaType () const
	Obtain a symbolic name for the element's schema type.
int	getNumberOfElements () const
	Returns a number of elements held.
virtual std::string	getSchemaType () const
	Returns name of the schema type that can be used to validate this element.
ms_quant_composition &	operator= (const ms_quant_composition &right)
	C++ style assignment operator.
bool	updateElement (const int idx, const ms_quant_element *element)
	Update the information for a specific element.
virtual std::string	validateDeep (const ms_xml_schema *pSchemaFileObj) const
	Performs validation of all child elements in addition to 'shallow' validation.
virtual std::string	validateShallow (const ms_xml_schema *pSchemaFileObj) const
	Performs simple validation of the top-level elements only.

Detailed Description

Describes the compositionType type in quantitation.xml.

Objects of this type host a list of nested element elements.

Constructor & Destructor Documentation

ms_quant_composition() [1/2]

ms_quant_composition

(

)

Default constructor.

Assigns reasonable default values to all internal members.

ms_quant_composition() [2/2]

ms_quant_composition

(

const ms_quant_composition &

src

)

Copying constructor.

Parameters

src	another instance of this class to copy the content from.

Member Function Documentation

appendElement()

void appendElement

(

const ms_quant_element *

element

)

Adds a new element at the end of the list.

Parameters

element

an instance of element object to copy content from.

copyFrom()

void copyFrom

(

const ms_quant_composition *

right

)

Copies all content from another instance.

Parameters

right

another instance of this class to copy the content from.

defaultValues()

void defaultValues

(

)

Call this member if you want to start again.

All internal values are reset to their defaults, as if the object had been freshly created with the default constructor.

deleteElement()

bool deleteElement

(

const int

idx

)

Remove an element from the list.

Parameters

idx	number of the element for deletion from 0 to (getNumberOfElements() - 1).

Returns

TRUE if the element has been found and successfully deleted and FALSE otherwise.

getElement()

const ms_quant_element * getElement

(

const int

idx

)

const

Returns an element object by its number.

Parameters

idx	number of the element from 0 to (getNumberOfElements() - 1).

Returns

a read-only pointer to an element object. See Maintaining object references: two rules of thumb.

getElementSchemaType()

std::string getElementSchemaType

(

)

const

Obtain a symbolic name for the element's schema type.

The obtained type name can be used to get a corresponding type description object from ms_xml_schema.

Returns

symbolic type name for the element.

getNumberOfElements()

int getNumberOfElements

(

)

const

Returns a number of elements held.

Returns

total number of elements in the list.

getSchemaType()

std::string getSchemaType ( ) const

virtual

Returns name of the schema type that can be used to validate this element.

Additional information about the current object can be retrieved from the associated XML schema file. Every element in an XML document is defined with a named type, which you can use to find out what kind of limits (numerical or otherwise) are defined for values of that type.

See also

validateShallow(), validateDeep()

Returns

a symbolic fully qualified type name (for example, "mqm:nameType").

Reimplemented in ms_quant_neutralloss, and ms_quant_pepneutralloss.

operator=()

ms_quant_composition & operator=

(

const ms_quant_composition &

right

)

C++ style assignment operator.

Parameters

right

another instance of this class to copy the content from.

Returns

reference to the current object

updateElement()

bool updateElement	(	const int	idx,
		const ms_quant_element *	element
	)

Update the information for a specific element.

Parameters

idx	number of the element for updating from 0 to (getNumberOfElements() - 1).
element	an object to copy the content from.

Returns

TRUE if the element has been found and successfully updated and FALSE otherwise.

validateDeep()

std::string validateDeep ( const ms_xml_schema *  pSchemaFileObj ) const

virtual

Performs validation of all child elements in addition to 'shallow' validation.

The current object can be checked against an XML schema. When using this method all possible checks are performed. However, this is not a substitute for the schema: some schema-defined constraint are not applied (unique fields, foreign keys etc.).

In order to make sure that current object is free from all syntax errors validate it as a part of the whole document.

See also

validateShallow(), getSchemaType()

Parameters

pSchemaFileObj

a valid schema object instance to validate against.

Returns

user-friendly description of any errors found during validation or an empty string if no errors detected.

Reimplemented in ms_quant_neutralloss, and ms_quant_pepneutralloss.

validateShallow()

std::string validateShallow ( const ms_xml_schema *  pSchemaFileObj ) const

virtual

Performs simple validation of the top-level elements only.

The current object can be checked against some basic constraints in a schema without looking at children element types. When using this method only the current object and children derived from standard types (for example, restrictions with enumerations) are checked. For more thorough validation, use validateDeep().

See also

getSchemaType()

Parameters

pSchemaFileObj

a valid schema object instance to validate against.

Returns

user-friendly description of any errors found during validation or an empty string if no errors detected.

Reimplemented in ms_quant_neutralloss, and ms_quant_pepneutralloss.

---

The documentation for this class was generated from the following files:

• ms_quant_composition.hpp
• ms_quant_composition.cpp
